Operation Class Reference

#include <operation.h>

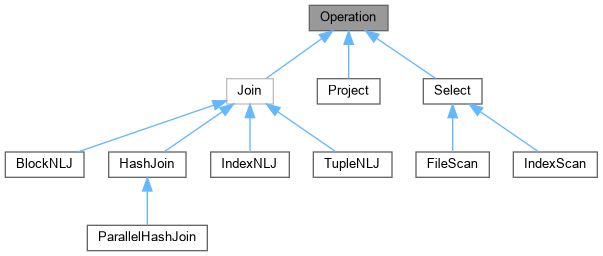

Inheritance diagram for Operation:

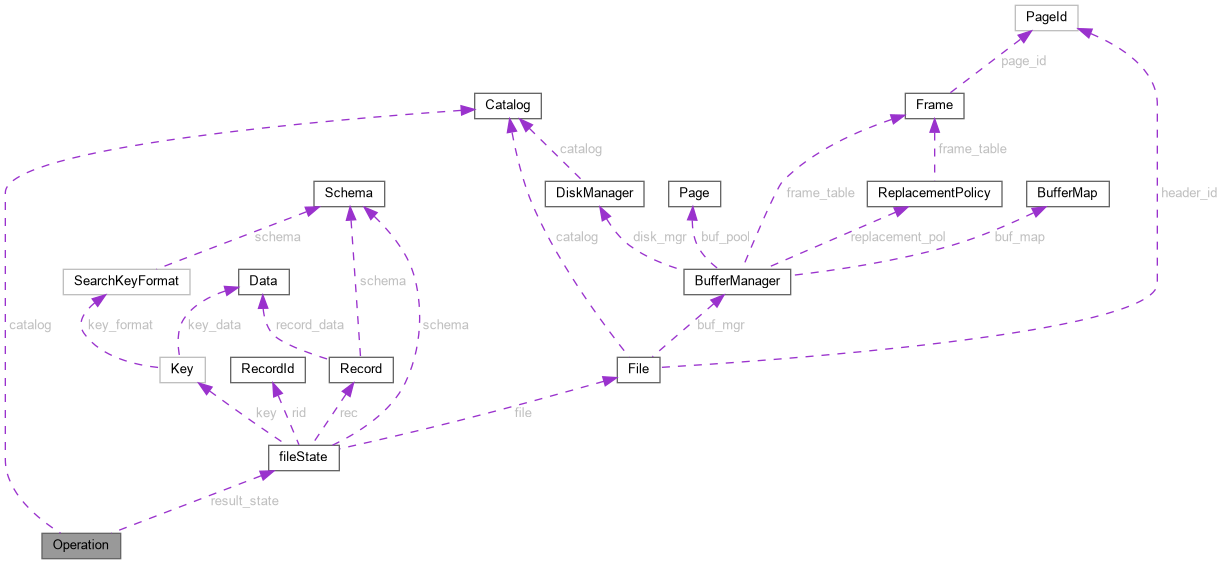

Collaboration diagram for Operation:

Public Member Functions
	Operation (FileId result_id, Catalog *catalog)
	Constructor for the Operation class. Because Operation is an abstract class, an object cannot be created, but this constructor is used by derived classes.
virtual	~Operation ()
	Destructor for the Operation class. Cleans up dynamic memory in result state.
virtual void	runOperation ()=0
	Runs the operation. Other than initial setup in the initialization, all the work of each operation is done in this function. It is a pure virtual method, and is implemented in inherited classes. All child classes must implement this method.

Protected Member Functions
void	_initState (FileId file_id, std::vector< FieldId > fields, fileState *state)
	Performs the file and temporary record setup for relational operators.
void	_delState (fileState *file_state)
	Deletes objects created in relop structs.

Protected Attributes
fileState	result_state
Catalog *	catalog

Detailed Description

SwatDB Operation Class. The interface to indivual relational operators operations the system:

Constructor & Destructor Documentation

Operation()

Operation::Operation	(	FileId	result_id,
		Catalog *	catalog
	)

Constructor for the Operation class. Because Operation is an abstract class, an object cannot be created, but this constructor is used by derived classes.

Precondition

result_id is the id of a valid newly created result file.

Parameters

result_name

std::string of a newly created result file

Member Function Documentation

_delState()

void Operation::_delState ( fileState *  file_state )

protected

Deletes objects created in relop structs.

Postcondition

Dynamic objects are deleted

Parameters

fileState

struct to be deleted

_initState()

void Operation::_initState ( FileId  file_id, std::vector< FieldId >  fields, fileState *  state  )

protected

Performs the file and temporary record setup for relational operators.

Precondition

A file exists that corresponds to the param rel_name

Parameters

file_id	FileId corresponding to the relation of interest
fields	std::vector<FieldId> that stores the fields with which to make the key
state	fileState pointer that will be filled

runOperation()

virtual void Operation::runOperation ( )

pure virtual

Runs the operation. Other than initial setup in the initialization, all the work of each operation is done in this function. It is a pure virtual method, and is implemented in inherited classes. All child classes must implement this method.

Precondition

Valid files and parameters have been passed to the contructor.

Postcondition

Result file has been populated with records that meet the criteria of the operation.

Implemented in BlockNLJ, FileScan, HashJoin, IndexNLJ, IndexScan, ParallelHashJoin, Project, and TupleNLJ.

---

The documentation for this class was generated from the following file:

• operation.h
