CS35: Quiz 2 Study Guide

Warning: This study guide is still in draft form, one or two topics could still be pruned.

In addition to all concepts from Quiz 1,

You should be able to define or explain the following terms:

Abstract data types; interface vs. implementation; advantages to using ADTs
The List interface, including implementation details and runtime analysis using array lists, linked lists
Divide and conquer
Merge sort and merge
Quick sort, partition, randomized quick sort, and pivot
Concepts related to sorting: runtime, comparisons, swaps.
Stack interface and operations
Queue interface and operations
Depth-first and breadth-first search
Dynamic memory management and responsibilities
Induction
Loop Invariant

You should be familiar with the following C++-related concepts:

Segmentation fault.
new and delete for basic types, one-dimensional arrays, and two-dimensional arrays
Role of class destructors and constructors
Pointer/array equivalence
Abstract (or pure virtual) classes
Templates
comparison operators

Practice problems

You should be able to implement all of the methods of LinkedList and ArrayList classes as well as provide a stack trace of a sample main() program. Declare and implement a new method for ArrayList , replaceItem(int i, T val), that replaces the existing value at position i with val. It should return the previously held value.

Define replaceItem for a templated LinkedList implementation. Compare and contrast the expected run time with the ArrayList implementation.

Write a program that prompts the user for an integer n, then reads n strings into an array of strings stored on the heap, prints true if the array is sorted and false otherwise, and then frees the memory on the heap. As part of this program declare and implement a templated boolean isSorted(T* a, int n) function that, given a pointer to an array a and the length of that array n, returns true if the array is sorted and false otherwise.

In class, we defined a Queue using various List implementations. Let's flip this around. Consider the following (somewhat strange) List definition, QueueList, that uses an awesomely cool MagicQueue to represent the data in the list. (Note that the details of MagicQueue are not given, but are also unnecessary given what you know about interfaces.)
```
              #pragma once

              #include "list.h"
              #include "magicqueue.h"

              template <typename T>
              class QueueList : public List<T> {
              private:
              MagicQueue <T> values;

              public:
              QueueList();
              ~QueueList();
              void insertAtHead(T item);
              void insertAtTail(T item);
              int getSize();
              bool isEmpty();
              // ...etc. all List methods are declared here
              };

              #include "queuelist-inl.h"

```
Using the above declarations, complete an implementation for the methods getSize(), insertAtHead(T item), and removeTail(). Your answers should be written as they would appear in queueList-inl.h, paying attention to the scope and template operators. Once complete, describe the O() of each of your methods. Again, the details of MagicQueue are not important; you should assume it implements a Queue interface properly in O(1) time.

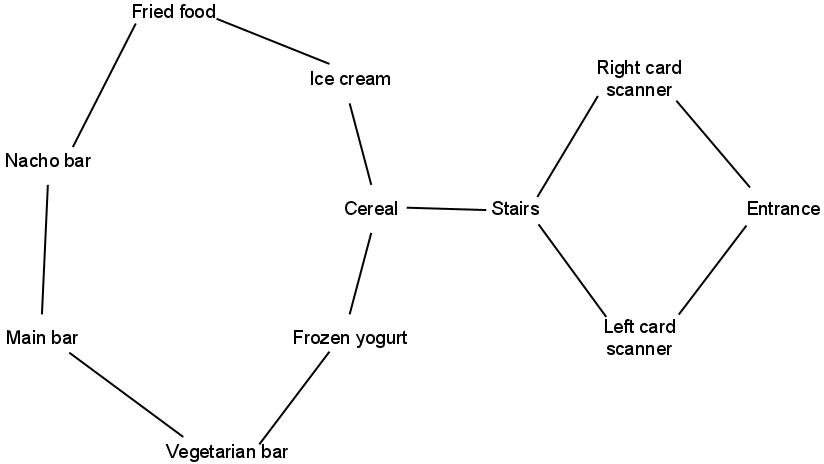

Consider the following somewhat simplified map of Sharples:
- Use depth-first search to find a path from the Entrance to the Fried food location. Carefully track the data used by depth-first search as the algorithm runs.
- Use breadth-first search to find a path from the Entrance to the Fried food location. Carefully track the data used by breadth-first search as the algorithm runs.
Trace and show work for sorting a set of integers using both merge sort and quick sort. In particular, be able to see how the helper methods merge and partition are used.

Consider the following algorithm, wackyMergeSort, similar to mergeSort:

    wackyMergeSort(A, n):
    if (n > 1)
        A1 = new array
        A2 = new array
        copy first two-thirds (2n/3)  of A into A1
        copy last  one-third (n-2n/3) of A into A2
        wackyMergeSort(A1, 2n/3)
        wackyMergeSort(A2, n-2n/3)
        // merges sorted A1, A2 back into A
        merge(A1, 2n/3, A2, n-2n/3, A)

Is wackyMergeSort a correct sorting algorithm?
How much total work is done per "level" of recursion ?
How many total levels are in the tree?
Overall, how much total work is done for wackyMergeSort for an input of size n?

Loop Invariants. For each of the following algorithms, prove the algorithm is correct by using a loop invariant. First, explicitly state the loop invariant. Then, show how the loop invariant implies the algorithm works. Finally, prove the loop invariant using induction.

adding all elements of a list

        Algorithm sum(A, n):
        Input: An array of n numbers
        Output: The sum of all elements in the array

        toReturn = 0
        for i=0...n-1
           toReturn = toReturn + A[i]
        return toReturn

checking to see if an array is sorted

        Algorithm isSorted(A, n)
        Input: An array A of n elements
        Output: true if A is sorted, false otherwise

        for i =0...n-2:
           if(A[i] > A[i+1]):
              return false
        return true

searching for an element in a sorted array.

        Algorithm binarySearch(A,n, x):
        Input: A sorted array of size n, an element of x we wish to find
        Output: Position of x, or -1 if not found

        low=0, high=n-1
        while(low < high):
           mid = (low+high)/2
           if(A[mid] == x) :
              return mid
           else if (A[mid] < x):
              low = mid+1
           else:
              high = mid-1
        return -1;
