The two main goals of this lab are to practice implementing and using non-linear data structures and to work on extensive unit testing. To that end, you will produce

1. A templated binary search tree implementation: linkedBST.
2. A series of unit tests to verify that your BST implementation works.

As with most assignments for the rest of the semester, you will be working with a partner. Both partners should be present and working on the code together. You will both be responsible for understanding all concepts, so dividing and conquering is not an option. The academic integrity policy applies to the entire pair; you cannot work or share code with anyone outside your partner.

You and your lab partner will share the same git repository, which is named lab06-<user1>-<user2>.git. Please access your lab by cloning the appropriate git repository, e.g.:

$ git clone git@github.swarthmore.edu:CS35-F17/lab06-mgagne1-adanner1.git

You can also get the ssh git url from CS35 github org. For this lab, we also are hosting several test files. Instead of giving everyone identical copies of the somewhat large files, you will create a symbolic link to the folder containing the files.

$ cd ~/cs35/labs/lab06
$ ln -s /usr/local/doc/lab06-data/  ./test_data

Below is an overview of the files required for submitting this lab. Those highlighted in blue will require implementation on your part. Those highlighted in black are complete and should not be modified except for comments.

• CS35 ADTs folder: a directory containing the C++ declarations of all the ADTs seen in CS35 so far, including dictionary.h and BST.h. It also contains stlList.h, stlQueue.h, stlStack.h: C++ implementations of the List,Queue, and Stack ADTs using the C++ Standard Template Library (STL). You can use any of them by writing a line like the following in your code

  #include <cs35/BST.h>


  This directory is in /usr/local/include/cs35 and the compiler automatically looks there for header files.
• linkedBSTNode.h The class declaration and for the LinkedBSTNode class.
• linkedBSTNode-inl.h Definitions of methods for the LinkedBSTNode class.
• linkedBST.h The class declaration for your BST implementation. You should not need to change this unless you want to include a new private helper function.
• linkedBST-inl.h definitions for the public methods of the LinkedBST class.
• linkedBST-private-inl.h definitions for the private helper functions of the LinkedBST class.
• main.cpp: The main function for a simple program that counts the number of distinct words in a file. Once you have your program written and unit tested, use the wordcount program to see your BST in action.
• README.md: The standard survey file for lab 06.
• manualTests.cpp: A "sandbox" test program that you can use while you develop your program.
• Makefile: The build instructions for your lab.
• test_data: a directory containing several text files to use for the wordCount application.
• tests.cpp: a collection of unit tests for your maze program. You will need to add several unit tests to ensure your BST works correctly.

Your main work for this lab is to complete and test the LinkedBST implementation. In linkedBST.h and linkedBSTNode.h we have defined templated LinkedBST and linkedBSTNode classes for you. The public methods should be implemented in linkedBST-inl.h and the helper methods are partially implemented in linkedBST-private-inl.h. We have given you a complete implementation of the findInSubtree method to get you started.

Our LinkedBST itself contains just two pieces of data:

• m_size: The current number of items in the tree.
• m_root: A pointer (possibly nullptr) to the root node of the tree, a LinkedBSTNode.

Each LinkedBSTNode contains:

• m_key: The key stored in this node.
• m_value: The value stored in this node.
• m_left: A pointer (possibly nullptr) to the left subtree of this node.
• m_right: A pointer (possibly nullptr) to the right subtree of this node.

Most of the public functions defined by the LinkedBST interface are simple calls to private recursive helper functions, which perform the required operation on some subtree of the tree. For example, the height of a node is equal to one more than the maximum height of its children.

One peculiarity of our implementation is that our helper update functions (insertInSubtree and removeFromSubtree) return a pointer to the root of the subtree they modified. This pointer is usually the same node as the node passed as an argument to the function (current), but can be a new node (for insertInSubtree) or a different previously-existing node (for removeFromSubtree) if their modification changes the root node of the subtree. This peculiarity greatly simplifies the binary search tree implementation because it allows a node's parent to easily maintain a correct tree structure if the modification changes the parent's child node.

The LinkedBST class must provide implementations of traversal methods: methods which allow us to see every piece of data in the tree. A traversal is given by a list of key-value pairs; we will represent such a pair as a pair object.

The BST interface supports four different kinds of traversal:

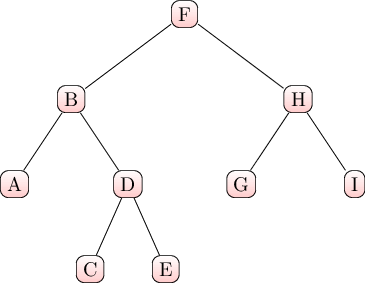

• A pre-order traversal puts the current node first, followed by its left subtree and then its right subtree. For the example here, the pre-order traversal would be the sequence F, B, A, D, C, E, H, G, I.
• A post-order traversal instead puts the current node after the left and right subtrees. The post-order traversal of this example is the sequence A, C, E, D, B, G, I, H, F.
• An in-order traversal puts the current node between the left and right subtrees. The in-order traversal of this example is the sequence A, B, C, D, E, F, G, H, I. (The fact that this is sorted is not a coincidence!)
• A level-order traversal reads the nodes from left to right and top to bottom, the same way we read English test. For this tree, the level-order traversal is F, B, H, A, D, G, I, C, E.

The first three forms of traversal are quite similar and are natural to define recursively. The level-order traversal is somewhat different and requires a breadth-first search approach similar to that which you used in the previous lab.

Each tree traversal function returns an STL vector of all key-value pairs in the tree, in the order specified by the tree traversal.

Wikipedia has some nice pictures of these traversals for reference. Note that your program is adding the elements to a list rather than “displaying” them as described on that Wikipedia page.

The vector<T> class, found in the vector library, is the C++ STL implementation of an array list. It is used somewhat differently from our List<T> interface. Here’s a handy translation guide:

Operation	List code	vector code
Insert at front	myList.insertAtHead(value)	no simple equivalent
Insert at back	myList.insertAtTail(value)	myVector.push_back(value)
Determine size	myList.getSize()	myVector.size()
Get element by index	myList.get(index)	myVector[index]
Set element by index	no equivalent	myVector[index] = value
Remove from back	myList.removeTail()	myVector.pop_back()

One other difference is that the pop_back method is void; you must retrieve the last element yourself if you want to see that element before it is removed.

The primary reason that we introduce vector for this lab is because vectors can also be copied just like pairs. Consider the following code:

List<int>* listPointer1 = new STLList<int>; // create a pointer to a new List
List<int>* listPointer2 = listPointer1;  // copy the pointer
listPointer1->insertAtTail(4);           // add an element
cout << listPointer2->getSize() << endl; // prints 1; they point to the same List
LinkedList<int> list1;                   // create a statically-allocated list
LinkedList<int> list2 = list1;           // illegal! Lists don't know how to copy themselves!

vector<int> vector1;                     // create a statically-allocated
vector1.push_back(4);
vector1.push_back(6);
vector<int> vector2 = vector1;           // vectors do know how to copy themselves
cout << vector2.size() << endl;          // prints 2 (since both elements were copied)
vector1[0] = 2;                          // assigns 2 to the first position of vector 1
cout << vector2[0] << endl;              // prints 4; vector 2 is a different vector

Some methods of the BST ADT interface use vector to prevent you from having to worry about memory management (e.g. delete) for the values they return.

In addition to implementing the LinkedBST class and the helper methods, you must write unit tests for them as well. To get you started, some of the tests in tests.cpp have been completed for you. For each remaining test, a comment containing the string “TODO” has been provided. You must write one test for each of these comments that tests the appropriate method or function in a non-trivial way. For the BST methods, you must provide a test that operates on a tree of height greater than one.

TEST(negativeHeight) {
  LinkedBST<int,string> tree;
  CHECK_EQUAL(-1, tree.getHeight());
}

Checking to ensure that the height of an empty tree is indeed -1 is a good thing to do, but if you were required to write a test for getHeight, this test would not suffice; it does not trigger recursion within the getHeightFromSubtree function. You are welcome to include the above test (or tests like it) in your lab submission, but make sure that each of the functions and methods has at least one non-trivial test.

Please remember that these tests are a development tool as well as a lab requirement. You should write these tests as soon as possible and use them to help you find bugs and verify the correctness of your code. You may even wish to write the tests before you write your implementation just so you can make certain that you know what you expect your code to do. If you use manualTests to figure out what’s happening in your code, you might also consider copying that code into tests.cpp once you figure out what you expect from it.

Consult the macro reference for UnitTest++ here for more tips on what commands/macros are available during unit testing.

For this lab, your program is required to run without memory errors or leaks. You should use valgrind as you proceed in your testing to track memory errors. When you have a complete first draft of your implementation:

• Commit and push what you have (in case something goes wrong).
• Run valgrind ./tests to make sure that the test program does not cause memory errors.
• Once memory errors are cleared, run valgrind --leak-check=full ./tests to identify and correct memory leaks.

For this and future labs, graders will assign minor penalties for poor commenting and coding style. Here are some style tips for this lab:

• You should pick meaningful variable names.

    // good
    int *array = new int[size];
    // bad
    int *a = new int[size];


• You should use correct and consistent indentation. Lines of code within a block should be indented two spaces further than lines surrounding them.*

    //good
    if(condition) {
      cout << "Test" << endl;
    }

    //bad
    if(condition) {
  cout << "Test" << endl;
       }


  *if your text editor's default indenting is four spaces instead of two, don't stress about it. Just be consistent when indenting.

• You should use a code block whenever possible, even if it's not necessary. This will help you avoid subtle/messy errors in the future.

  //good
  if(condition) {
    cout << "Something" << endl;
  }

  //legal but bad
  if(condition)
    cout << "Something" << endl;


• Do write comments at the top of each file, indicating your name and the purpose of the code file
• You don't have to write a comment for each line of code, but do write comments about meaningful chunks of code such as a loop, if/else statement, etc.
• Do write comments describing the purpose and signature of each function declaration. Use @param to describe an input parameter, @return to describe what gets returned, and @throws to describe exceptions that should be thrown. An example lies below:

      /**
       * Retrieves the first element of the list.
       * @return The element at index 0 of this list.
       * @throws runtime_error If the list is empty.
       */
      virtual T peekHead() = 0;



When you have completed your lab, answer a few short survey questions in the file README.md.

When you have completed your lab, you should have

• A completed implementation of LinkedBST, including all helper functions.
• Appropriate tests for all functions.
• No memory errors!
• No memory leaks!
• Code which conforms to the style guide above.

Once you are satisfied with your code, hand it in using git. Remember the add, commit, push development cycle. You can push as many times as you like, but only the most recent submission will be graded. You may want to run git status to confirm all modifications have been pushed.
