If you were writing a tic-tac-toe game, using the Zelle graphics
library, what objects would you use? Take a few minutes and jot
down a main()
function that might play the tic-tac-toe game (create
the board, user goes, computer goes, etc). Just like the TDD we did
earlier in the semester, it helps if you have some idea of the objects
you need to create, what data is stored in each object, and what methods
you will need to call of each object.

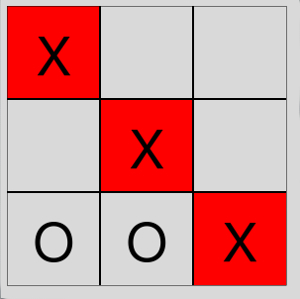

One way to write a game like tic-tac-toe, or any board game with
squares that the user clicks on (sudoku, scrabble, nonograms, 2048, etc),
is to have two classes: a Cell
or Tile
class, and a Board
class that
uses the Cell
class. For example, in tic-tac-toe, we could have a Board
class the contains a python list of Cell
objects, where each Cell
object
can be clicked on, and display a character ("X" or "O"), or change colors.
Cell
classHere is one way you could write the Cell
class:
__str__
: create and return string with cell info in itgetChar()
: to get the mark in the cellsetChar(mark)
: to set a mark in the cellsetColor(color)
: to set the fill color of the Rectangleclicked(pt)
: returns True if the given point object (pt) is 'within' the
cell Rectangle object (Hint: will need/use Zelle methods like getX()
and getP1()
)Once you have __init__(self,cp,size,gw)
written, write some test code to see if
it works!
def main():
w = 600
h = w
gw = GraphWin("cell test",w,h)
cp = Point(w/2, h/2)
size = w/4
c = Cell(cp,size,gw)
c.setChar("X")
assert(c.getChar() == "X")
assert(c.clicked(cp) == True)
pt = gw.getMouse()
if c.clicked(pt):
c.setColor("red")
click = gw.getMouse()
if __name__ == "__main__":
main()
