CS88 Final Project

Mitnick Attack

This lab is built on the SEED Labs for Security Education project by Prof. Wenliang Du, at Syracuse University.

Kevin Mitnick is probably one of the most well-known hackers in USA. He was on FBI’s wanted list of criminals. While on the run, he became interested in hacking cellular phone networks, and was in need for specialized software that could help him do that. That led him to Tsutomu Shimomura, a researcher working at the San Diego Supercomputer Center, who was one of the leading researchers on the security of cellular phone networks. He had the code that Mitnick wanted.

In 1994, Mitnick successfully launched an attack on Shimomura’s computer, by exploiting the vulnerabilities in the TCP protocol and the trusted relationship between two of Shimomura’s computers. The attack triggered a dramatic showdown between the two people, and it eventually led to the arrest of Mitnick. The showdown was turned into books and Hollywood movies later. The attack is now known as the Mitnick attack, which is a special type of TCP session hijacking.

How the Mitnick Attack Works

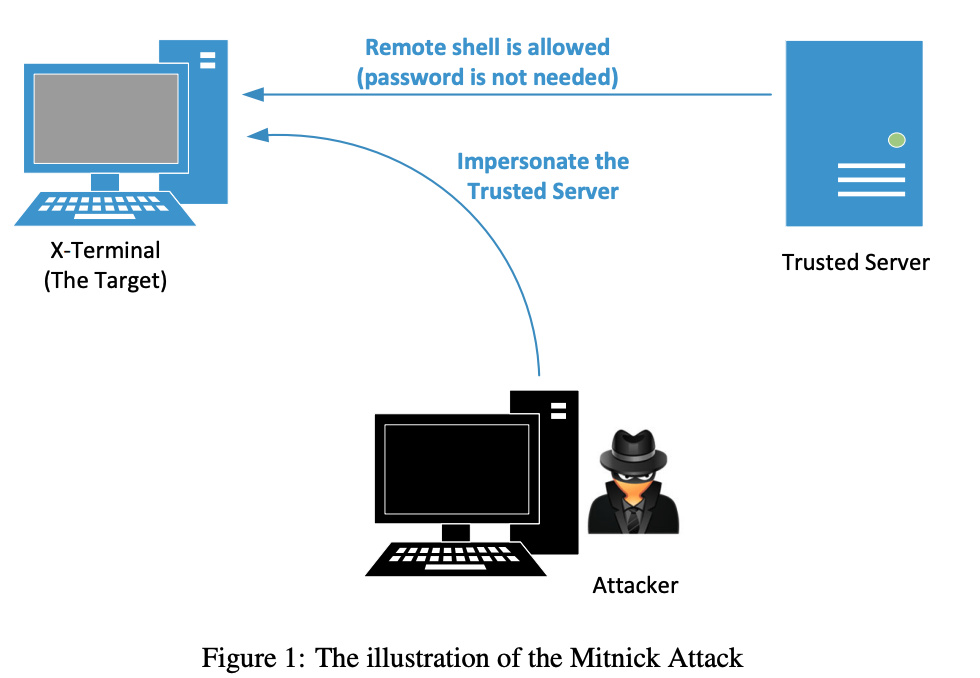

The Mitnick attack is a special case of TCP session hijacking attacks. Instead of hijacking an existing TCP connection between victims A and B, the Mitnick attack creates a TCP connection between A and B first on their behalf, and then naturally hijacks the connection.

In the actual Mitnick attack, host A was called X-Terminal, which was the target. Mitnick wanted to log into X-Terminal and run his commands on it. Host B was a trusted server, which was allowed to log into X-Terminal without a password. In order to log into X-Terminal, Mitnick had to impersonate the trusted server, so he did not need to provide any password. Figure 1 depicts the high-level picture of the attack. There are four primary steps in this attack.

Step 1: Sequence Number Prediction

Before the attack, Mitnick needed to learn the pattern of the initial sequence numbers (ISN) on X-terminal (in those days, ISNs were not random). Mitnick sent SYN requests to X-terminal and received SYN+ACK responses, then he sent RESET packet to X-Terminal, to clear the half-open connection from X-Terminal’s queue (to prevent the queue from being filled up).

After repeating this for twenty times. He found there was a pattern between two successive TCP ISNs. This allowed Mitnick to predict ISNs, which was essential for the attack.

Step 2: SYN flooding attack on the trusted server.

To send a connection request from the trusted server to X-Terminal, Mitnick needed to send out a SYN packet from the trusted server to X-Terminal. X-Terminal would respond with a SYN+ACK packet, which was sent to the trusted server. Since the trusted server did not actually initiate the request, it would send a RESET packet to X-Terminal, asking X-Terminal to stop the 3-way handshake.

This behavior is a barrier to successfully launching the Mitnick attack. To solve this problem, Mitnick had to silence the trusted server. Therefore, before spoofing, Mitnick launched a SYN flooding attack on the server. Back then, operating systems were far more vulnerable to the SYN flooding attacks. This attack could now shut down the trusted computer, completely silencing it.

Step 3: Spoofing a TCP connection.

Mitnick wanted to use rsh (remote shell) to run a backdoor command on X-Terminal; once the backdoor was setup, he could then log into X-Terminal. To run a remote shell on X-Terminal, Mitnick needed to pass the authentication, i.e, he needed to have a valid account on X-Terminal and know its password. Obviously, he did not have that.

Shimomura often needed to log into X-Terminal from the trusted server. To avoid typing passwords each time, he added some information in the .rhosts file on X-Terminal, so when he logged into XTerminal from the trusted server, no password would be asked. This was quite a common practice back then. With this setup, without typing any password, Shimomura could run a command on X-Terminal from the trusted server using rsh, or run rlogin to log into X-Terminal.

Mitnick wanted to exploit this trusted relationship. He needed to create a TCP connection between the trusted server and X-Terminal, and then run rsh inside this connection. He first sent a SYN request to X-Terminal, using the trusted server’s IP as the source IP address. X-Terminal then sent a SYN+ACK response to the server. Since the server had been shut down, it would not send RESET to close the connection.

To complete the three-way handshake protocol, Mitnick needed to spoof an ACK packet, which must acknowledge the sequence number in X-Terminal’s SYN+ACK packet. Unfortunately, the SYN+ACK response only went to the trusted server, not to Mitnick, he could not see the sequence number. However, because of the prior investigation, Mitnick was able to predict what this number was, so he was able to successfully spoof the ACK response sent to X-Terminal to complete the TCP three-way handshake.

Step 4: Running a remote shell.

Using the established TCP connection between the trusted server and X-Terminal, Mitnick could send a remote shell request to X-terminal, asking it to run a command. Using this command, Mitnick wanted to create a backdoor on X-Terminal so that he could get a shell on X-Terminal anytime without repeating the attack.

All he needed to do was to add + + to the .rhosts file on X-Terminal. He could achieve that by executing the following command using rsh on X-Terminal: echo + + > .rhosts. Since rsh and rlogin programs were used, along with the .rhosts file for authentication, the X-Terminal would trust every rsh and rlogin request from anyone!

Lab setup

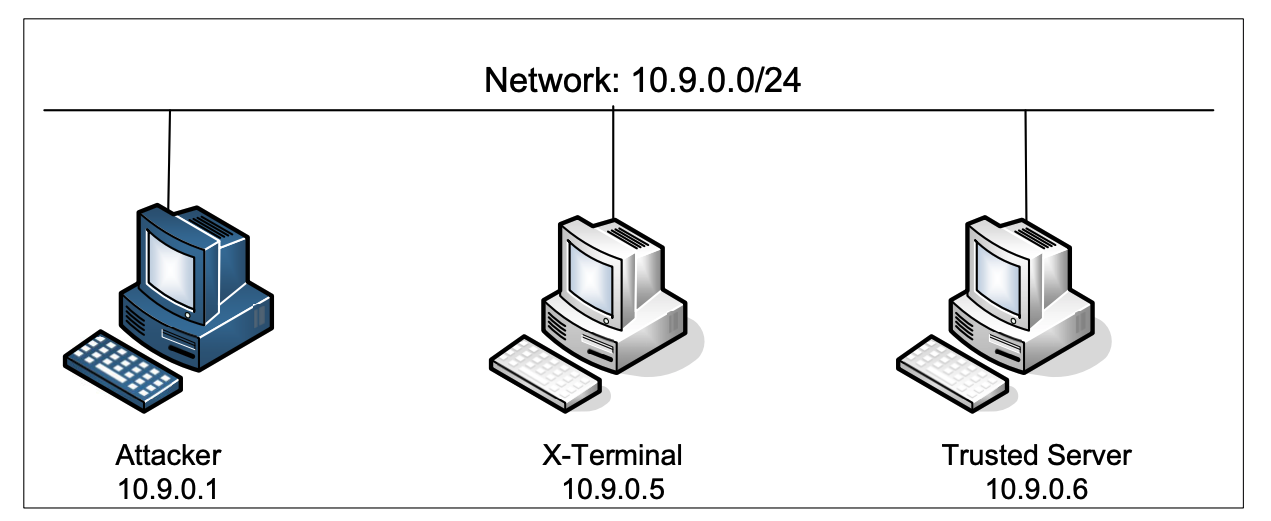

In this project we need three machines, one for X-Terminal, one for Trusted Server, and the other for the attacker. In the real Mitnick attack, the attacker machine is a remote machine. In this project, for the sake of simplicity, we will put all these three machines on docker containers on the same network.

In this project, you can either use the VM or the attacker container as the attacker machine. The attacker container is configured differently from the other docker containers. Here are the differences:

Shared folder. When we use the attacker container to launch attacks, we need to put the attacking code inside the attacker container. To do so we have a volumes folder that is shared between the attacker’s docker container and the VM.
Host mode. In this project, the attacker needs to be able to sniff packets, but running sniffer programs inside a container has problems, because a container is effectively attached to a virtual switch, so it can only see its own traffic, and it is never going to see the packets among other containers. To solve this problem, we use the host mode for the attacker container. This allows the attacker container to see all the traffic. When a container is in the host mode, it sees all the host’s network interfaces, and it even has the same IP addresses as the host.
Privileged mode. The attacker docker container also runs in a privileged mode to modify IP forwarding tables and be able to modify kernel parameters at runtime (using sysctl).

Configuring `rsh`

The remote shell rsh is a command line program that can execute shell commands remotely.

Although we will use rsh in this task, we should know that rsh and rlogin programs are not secure, and they are not used any more. They have been replaced by more secured programs, such as ssh.

The rsh server program uses two files for authentication, .rhosts and /etc/hosts.equiv. Every time the server receives a remote command request, it will check the /etc/hosts.equiv.

If the request comes from a hostname stored in the file, the server will accept it without asking for passwords.
If /etc/hosts.equiv does not exist or do not have that hostname, rsh will check the .rhosts file on the user’s home directory.

Shimomura often needed to run remote commands on X-Terminal from the trusted server. To avoid typing passwords, he created a .rhosts file on host X-Terminal and put the trusted server’s IP address into the file.

Note that the .rhosts file must reside at the top level of a user’s home directory and can be written only by the owner/user.

Please use the following commands on X-Terminal to set up the .rhosts file. It should be noted when we get into a container, we will be in the root account. In this project, we need to switch to a normal user account called seed, which is already created inside the container:

# su seed                               ➙Switch to the seed account
$ cd                                    ➙Go to seed’s home directory
$ touch .rhosts                         ➙Create an empty file
$ echo [Server’s IP address] > .rhosts
$ chmod 644 .rhosts

To verify your configuration, try running the following command on the trusted server:

# su seed                               ➙Switch to the seed account
$ rsh [X-Terminal’s IP] date

If the command prints the current date and time, your configuration is working now. If you see “Authentication Failure”, something in your setup may not be correct. One of the common mistakes is the permission on the .rhosts file: you should make sure it is only writable to the owner.

Allow all. To allow users to execute commands on X-Terminal from all IP addresses, we just need to put two plus signs ("+ +") in the .rhosts file. This is very dangerous, please do not do this outside of this project! But if you are an attacker, this is a convenient way to set up a backdoor. This is what the Mitnick attack used.

Task 1: Simulated SYN flooding

The operating systems at the time of the Mitnick Attack were vulnerable to SYN flooding attacks, which could mute the target machine or even shut it down. However, SYN flooding can no longer cause such a damage for modern operating systems. We will simulate this effect.

We can manually stop the trusted server container, but that is not enough. When X-Terminal receives a SYN packet from the trusted server, it will respond with a SYN+ACK packet. Before sending out this packet, it needs to know the MAC address of the trusted server. The ARP cache will be checked first:

If there is no entry for the trusted server, X-Terminal will send out an ARP request packet to ask for the MAC address.
Since the trusted server has been muted, no one is going to answer the ARP request, hence X-Terminal cannot send out the response.
As a result, the TCP connection will not be established.

In the real attack, the trusted server’s MAC address was actually in X-Terminal’s ARP cache. Even if it was not, before silencing the trusted server, we could simply spoof an ICMP echo request from the trusted server to X-Terminal, that would trigger X-Terminal to reply to the trusted server, and hence would get the trusted server’s MAC address, and save it to the cache.

To simplify the task, before stopping the trusted server, we will simply ping it from X-Terminal once, and then use the arp command to check and make sure that the MAC address is in the cache. It should be noted that cache entry may be deleted by the operating system if the OS fails to reach a destination using the cached MAC address. To simply your attack, you can run the following command on X-Terminal to permanently add an entry to the ARP cache (it needs to run in the root account):

# arp -s [Server’s IP] [Server’s MAC]

Task 2: Spoof TCP Connections and rsh Sessions

Now that we have “brought down” the trusted server, we can impersonate the trusted server, and try to launch an rsh session with X-Terminal. Since rsh runs on top of TCP, we first need to establish a TCP connection between the trusted server and X-Terminal, and then run the rsh in this TCP connection.

One of the difficulties in the Mitnick attack is to predict the TCP sequence numbers. It was possible back then when TCP sequence numbers were not randomized. However, modern operating systems now randomize their TCP sequence numbers (as a countermeasure against TCP session hijacking attacks), so predicting the numbers becomes infeasible.

To simulate the original Mitnick attack, you are allowed to sniff packets, to figure out the TCP sequence numbers, instead of guessing them.

Restrictions To simulate the original Mitnick attack as closely as we can, even though you can sniff the TCP packets from X-Terminal, you cannot use all the fields in captured packets, because in the real attack, Mitnick could not sniff packets. You can use the following fields of the captured packets:

The TCP sequence number field (this does not include the acknowledgment field).
The TCP flag field. This allows us to know the types of the captured TCP packets. Mitnick knew exactly what type of packets were sent out by X-Terminal, because they are part of the TCP three-way handshake protocol.
All the length fields, including IP header length, IP total length, and TCP header length.

The behavior of rsh. To create a spoofed rsh session between the trusted server and X-Terminal, we need to understand the behavior of rsh. Let us start an rsh session from Trusted Server to X-Terminal, and then use Wireshark to capture the packets between them.

We will run Wireshark on the attacker VM; make sure to select the correct network interface corresponding to the 10.9.0.0/24 network). We use the following command to run the date command on Host B from Host A via the rsh remote shell.

// On Trusted Server
$ rsh 10.9.0.5 date

The packet trace in this rsh session is shown in the following. Here 10.9.0.6 is the Trusted Server’s IP address, and 10.9.0.5 is X-Terminal’s IP address. If a packet does not carry any TCP data, the length information (i.e. Len=0) is omitted.

Listing 1: Packet trace of an rsh session

# The first connection
    SRC IP  DEST IP     TCP Header
1 10.9.0.6 10.9.0.5     1023 -> 514 [SYN] Seq=778933536
2 10.9.0.5 10.9.0.6     514 -> 1023 [SYN,ACK] Seq=10879102 Ack=778933537
3 10.9.0.6 10.9.0.5     1023 -> 514 [ACK] Seq=778933537 Ack=10879103
4 10.9.0.6 10.9.0.5     1023 -> 514 [ACK] Seq=778933537 Ack=10879103 Len=20
                        RSH Session Establishment
                        Data: 1022\x00seed\x00seed\x00date\x00
5 10.9.0.5 10.9.0.6 514 -> 1023 [ACK] Seq=10879103 Ack=778933557

# The second connection
6 10.9.0.5 10.9.0.6 1023 -> 1022 [SYN] Seq=3920611526
7 10.9.0.6 10.9.0.5 1022 -> 1023 [SYN,ACK] Seq=3958269143 Ack=3920611527
8 10.9.0.5 10.9.0.6 1023 -> 1022 [ACK] Seq=3920611527 Ack=3958269144

# Going back to the first connection
9 10.9.0.5 10.9.0.6   514 -> 1023 [ACK] Seq=10879103 Ack=778933557 Len=1
                      Data: \x00
10 10.9.0.6 10.9.0.5  1023 -> 514 [ACK] Seq=778933557 Ack=10879104
11 10.9.0.5 10.9.0.6  514 -> 1023 [ACK] Seq=10879104 Ack=778933557 Len=29
                      Data: Sun Feb 16 13:41:17 EST 2020

We can observe that an rsh session consists of two TCP connections. The first connection is initiated by Host A (the client).
An rshd process on Host B is listening to connection requests at port 514. Packets 1 to 3 are for the three-way handshake protocol. After the connection has been established, the client sends rsh data (including user IDs and commands) to the Host B (Packet 4).
The rshd process will authenticate the user, and if the user is authenticated, rshd initiates a separate TCP connection with the client.
The second connection is used for sending error messages. In the trace above, since there was no error, the connection was never used, but the connection must be successfully established, or rshd will not continue.
Packets 6 to 7 are for the three-way handshake protocol of the second connection. After the second connection has been established, Host B will send a zero byte to the client (using the first connection), Host A will acknowledge the packet.
Following this, rshd on Host B will run the command sent by the client, and the output of the command will be sent back to the client, all via the first connection.

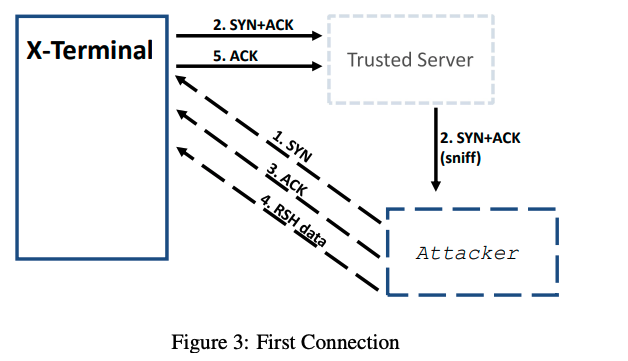

Task 2A: Spoof the First TCP Connection

The first TCP connection is initiated by the attacker via a spoofed SYN packet. As you can see in Figure 3, after X-Terminal receives the SYN packet, it will in turn send a SYN+ACK packet to the trusted server. Since the server has been brought down, it will not reset the connection. The attacker, which is on the same network, can sniff the packet and get the sequence number.

Step 1: Spoof a SYN packet. Write a program to spoof a SYN packet from the trusted server to X-Terminal (see Packet 1 in Listing 1). There are six standard TCP code bits, and they can be set in the flag field of the TCP header. The following code examples show how to set the flag field and how to check whether certain bits are set in the flag field.
```
# ’U’: URG bit
# ’A’: ACK bit
# ’P’: PSH bit
# ’R’: RST bit
# ’S’: SYN bit
# ’F’: FIN bit
tcp = TCP()
# Set the SYN and ACK bits
tcp.flags = "SA"
# Check whether the SYN and ACK are the only bits set
if tcp.flags == "SA":
# Check whether the SYN and ACK bits are set
if ’S’ in tcp.flags and ’A’ in tcp.flags:
```

The source port of the SYN packet must be from port 1023. If a different port is used, rsh will reset the connection after the connection is established. If this step is successful, from Wireshark, we should be able to see a SYN+ACK packet coming out of X-Terminal (see Packet 2 in Listing 1).

Step 2: Respond to the SYN+ACK packet. After X-Terminal sends out a SYN+ACK, the trusted server needs to send out an ACK packet to complete the three-way handshake protocol. The acknowledge number in the packet should be S+1, where S is the sequence number contained in the SYN+ACK packet. See Packet 3 in Listing 1.

In the actual Mitnick attack, the attacker could not see the SYN+ACK packet, because it was sent to the trusted server, not to the attacker. That is why Mitnick had to guess the value of the sequence number. For this project, however, you are allowed to retrieve the sequence number via packet sniffing. Write a sniff-and-spoof program using Scapy and run it on the attacker’s machine.

Here is a skeleton of a sniff-and-spoof program that might be useful. Please make sure to follow the restrictions described at the beginning of the section regarding viewing TCP headers.

#!/usr/bin/python3

from scapy.all import *

x_ip = "10.9.0.5" # X-Terminal
x_port = 514 # Port number used by X-Terminal

srv_ip = "10.9.0.6" # The trusted server
srv_port = 1023 # Port number used by the trusted server

# Add 1 to the sequence number used in the spoofed SYN

seq_num = 0x1000 + 1

def spoof(pkt):
  global seq_num # We will update this global variable in the function
  old_ip = pkt[IP]
  old_tcp = pkt[TCP]

  # Print out debugging information
  tcp_len = old_ip.len - old_ip.ihl*4 - old_tcp.dataofs*4 # TCP data length
  print("{}:{} -> {}:{} Flags={} Len={}".format(old_ip.src, old_tcp.sport,
                          old_ip.dst, old_tcp.dport, old_tcp.flags, tcp_len))

  # Construct the IP header of the response
  ip = IP(src=srv_ip, dst=x_ip)

  # Check whether it is a SYN+ACK packet or not;
  # if it is, spoof an ACK packet
  # TODO: ... Add code here ...

myFilter = ’tcp’ # You need to make this filter more specific

# TODO: Set the correct value for the interface ID
sniff(iface=’br-****’, filter=myFilter, prn=spoof)

Step 3: Spoof the rsh data packet. Once the connection is established, the attacker needs to send rsh data to X-Terminal. The structure of the rsh data is shown below.
```
[port number]\x00[uid_client]\x00[uid_server]\x00[your command]\x00
```
- The data has four parts: a port number, client’s user ID, server’s user ID, and a command.
- The port number will be used for the second connection (see Task 2B). Both the client’s and server’s user ID is seed in the docker containers.
- The four fields are separated by a byte 0. Note that there is also a byte 0 at the end of the rsh data.
- An example is given in the following. In this example, we tell X-Terminal that we are going to listen on port 9090 for the second connection and the command we want to run is touch /tmp/xyz.
  data = ’9090\x00seed\x00seed\x00touch /tmp/xyz\x00’ send(IP()/TCP()/data, verbose=0)

You should modify the sniff-and-spoof program written in Step 2, so an rsh data packet is sent to X-Terminal (see Packet 4 in Listing 1). If this step is successful, from Wireshark, we can see that X-Terminal is going to initiate a TCP connection to the trusted server’s port 9090, which is the port number specified in our rsh data.

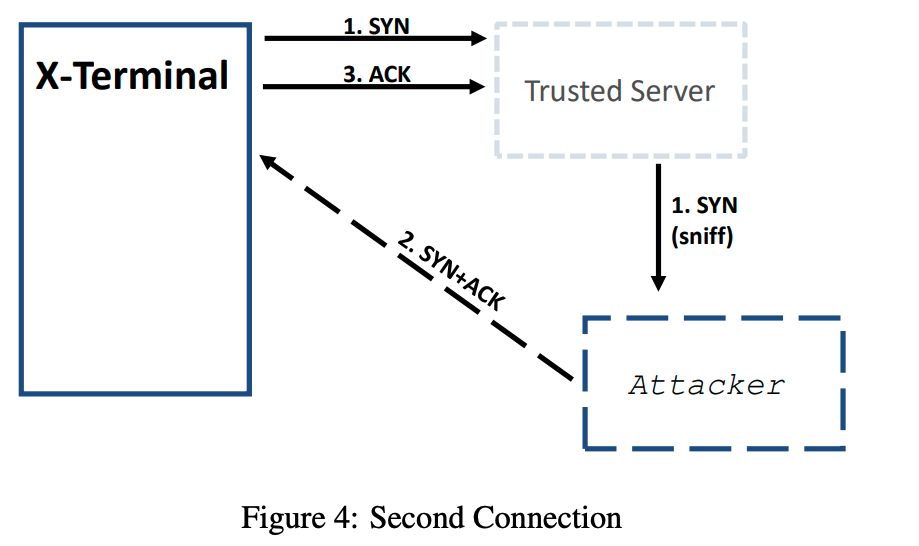

Task 2B: Spoof the Second TCP Connection

After the first connection has been established, X-Terminal will initiate the second connection. This connection is used by rshd to send out error messages. In our attack, we will not use this connection, but if this connection is not established, rshd will stop without executing our command.

Therefore, we need to use spoofing to help X-Terminal and the trusted server finish establishing this connection. See Figure 4.

Write a separate sniff-and-spoof program, which sniffs the TCP traffic going to the port 9090 of the trusted server (assuming 9090 is used in Task 2A). When it sees a SYN packet, it should respond with a SYN+ACK packet. See Packet 7 in Listing 1 for an example.

If both connections have been successfully established, rshd will execute the command contained in the rsh data packet. Check the /tmp folder and see whether /tmp/xyz is created and whether its timestamp matches the present time.

Task 3: Setup a Backdoor

In Task 2, we only run a touch command in the attack to prove that we can successfully run a command on X-Terminal.

If we want to run more commands later, we can always launch the same attack, however this is pretty inconvenient. Mitnick, instead of launching the attack again and again, planted a backdoor in X-Terminal after his initial attack.

This backdoor allowed him to log into X-Terminal normally anytime he wanted, without typing any password. To achieve this goal, as we have discussed in previous sections, all we need to do is to add the string + +` to the .rhosts file (in a single line). We can include the following command in our rsh data. echo + + > .rhosts

Replace the touch command in Task 2 with the echo command above, and then repeat the attack. If the attack succeeds, the attacker should be able to remotely log into X-Terminal using the following command, and no password is needed:

$ rsh [X-Terminal’s IP]

If the rsh program is not installed on the attacker container, install it using the following commands:

# apt-get update && apt-get -y install rsh-redone-client
