CS56 Computer Animation: Lab 1

In which, we make procedural 2D animations with spheres

In this assignment, you will work with particles that move in straight lines, circles, oscillations, or the direction of a target.

The goals of this lab are to work with

points, velocity, and time
sine, cosine, and tangent

Get the source

The source is available from github.swarthmore.edu. All your code for this course will be in your AnimationToolkit repository.

> cd cs56/AnimationToolkit
> git pull
> cd build
> cmake ..; make

If you DO NOT have a Swarthmore github account yet

For those of you without an account yet, you can download the repository from here. You can still use git locally to keep track of your changes. To submit, we will set the url to the remote repository manually (The professor will send you instructions once your account is setup).

> mkdir cs56
> cd cs56
> unzip AnimationToolkit-master-a1.zip
> cd AnimationToolkit-master-a1
> git init
> git add .
> git commit -m "assignment framework"

Assignment: Hello Animation! Nice to meet you!

Due September 13

Question 1: Eyes! (5 points)

An easy way to create smooth motion is to use sine() or cosine() to change an object's properties. For this question, modify the code in assignments/a1-hello/eyes.cpp to draw a pair of eyes. Then use sine() to animate two eyes like so.

To run your program from the build directory, type

build> ../bin/a1-eyes

Tip: sin() will smoothly vary between 1 and -1 given smoothly increasing values. Use elapsedTime() (defined in "AFramework.h") as the input to sin().

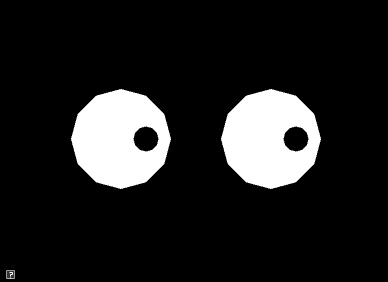

Question 2: Look! (5 points)

In class, we talked about how atan2 (tangent) can be used to compute an angle given a point. For this question, you will animate the eyes from Question 1 to follow a target. Your solution should use tangent to compute the position of the pupils.

The target is indicated with a red dot. To move it, click and hold down the left mouse button to drag it to a new location.

Implement your solution in assignments/a1-hello/look.cpp. To run your program from the build directory, type

build> ../bin/a1-look

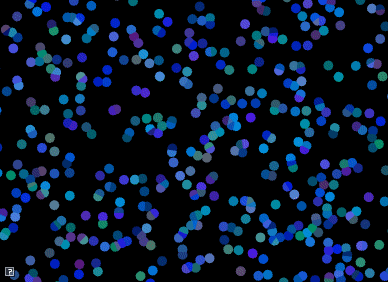

Question 3: Particles on the move (10 points)

In class, we talked about how to animate a particle to move in a straight line. In this assignment, we will extend this program to animate *lots* of particles moving in a straight line.

Implement your program in assignments/a1-hello/velocity.cpp To run your program from the build directory, type

build> ../bin/a1-velocity

This program should support the following features

Create 100+ particles, randomly distributed across the screen
Particles should all move in the same direction, but at different speeds
Particles should wrap when they move off the screen. For example, if a particle's X position is greater than the window width, it should be reset to 0.
Particle colors should also be randomized

It is up to you how to implement your program. However, some recommendations

Use particle.cpp as a reference
Implement moving particles first
Implement random colors afterwards
Define a struct or class to hold the state for each particle. The state would include the particle's position, color, and velocity.
Store your particles in a vector or array. Initialize them in setup(). Update them in update(). Draw them in draw().

Tip: Color Jitter The easiest way to generate a random color is to sample a random value for each red, green, and blue component. However, in the example above, we used a different approach called color jittering. To jitter color, we start with a base color and then add random deviations from it. For example, if our base color were blue, (0.2,0.8,0.2), we can jitter its components by adding random values in the range [-0.2, 0.2]. This gives us colors that are close to the original but still has variety.

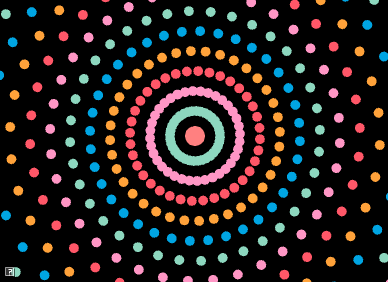

Question 4: Hypnotic circles (10 points)

In class, we talked about how to animate a particle to move in a circle. In this assignment, we will extend this program to animate particles moving in concentric circles.

Implement your solution in assignments/a1-hello/circles.cpp To run your program from the build directory, type

build> ../bin/a1-circles

This program should support the following

Create 36*N particles, where N is the number of concentric circles. Each circle should have 36 particles, spaced 10 degrees apart.
Alternating circles should rotate in opposite directions.
Particles in the same circle should share the same color.

Tip: Color Palettes A color palette is a simple method for generating harmonious colors. In this approach, we define a list of colors to use in our application. When we need a color, we choose it from this list. Above, we used the following palette.

   //https://www.color-hex.com/color-palette/82379
   std::vector pallet =
   {
      AVector3(0,165,227)/255.,
      AVector3(141,215,191)/255.,
      AVector3(255,150,197)/255.,
      AVector3(255,87,104)/255.,
      AVector3(255,162,58)/255.
   };

BONUS: Do something cool or quirky (up to 2 points)

Even with just spheres, it's possible to make an interesting demo!

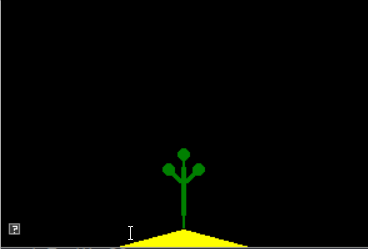

Create a unique animation effect. For credit, you must submit your code and a video or gif. You can capture a video using recordmydesktop (instructions below) or with Peek.

You can easily create your own programs by copying an existing demo and then editing CMakeLists.txt to build it. See one of the same programs for an example!

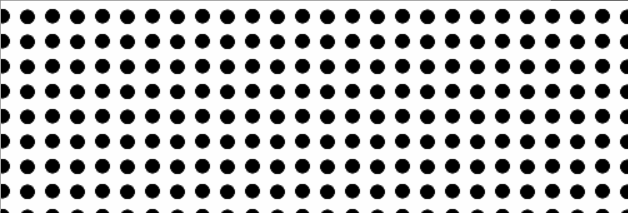

Some ideas

Animate color and size
Change the color based on the current position
Use different shapes
Use more interesting velocities for the particles, for example
- Use sin/cos to create falling snow or rising bubbles

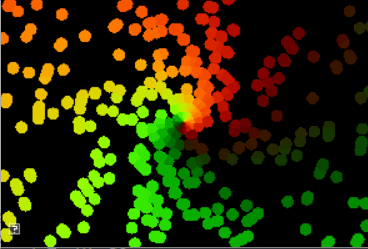

- Create a spiral animation (see above)
Create an animated scene (like the above face)
